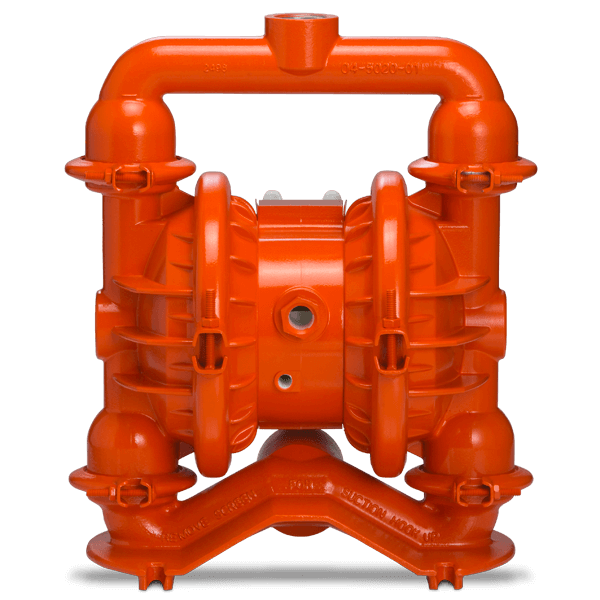

Wilden P4/WMAPP/BNS/BN/BN/0014 – 38 mm (1-1/2″) Pro-Flo® Series Clamped Metal Pump

OVERVIEW Featuring the original air-operated double-diaphragm pump design by Jim Wilden, clamped metal pumps offer a simple, rugged design for general industrial applications. Designed with ease of maintenance in mind, clamped pumps are simple to install and are made for quick serviceability, allowing the pump to be taken apart and put back together with only a single tool. Proven by the test of time, hundreds of thousands of Jim Wilden’s clamped pumps have pumped billions of gallons of fluid on an annual basis. PERFORMANCE AIR INLET 1/2″ FNPT LIQUID INLET 38 mm (1-1/2″) LIQUID DISCHARGE 32 mm (1-1/4″) CONNECTION TYPE NPT/BSPT (Threaded) MAX SUCTION LIFT CAPABILITY Rubber – 5.8 m (19.0′) Dry, 8.0 (26.0′) Wet TPE – 5.2 m (17.0′) Dry, 8.8 m (29.0′) Wet Full-Stroke PTFE – 6.4 m (21.0′) Dry, 9.3 m (30.6′) Wet Reduced-Stroke PTFE – 3.7 m (12′) Dry, 8.5 m (28′) Wet Ultra-Flex™ – 5.2 m (17.0′) Dry, 8.5 m (28.0′) Wet MAX FLOW RATE Rubber – 288 lpm (76 gpm) TPE – 307 lpm (81 gpm) Full-Stroke PTFE – 330 lpm (87.2 gpm) Reduced-Stroke PTFE – 295 lpm (78 gpm) Ultra-Flex™ – 269 lpm (71 gpm) MAX PRESSURE 8.6 bar (125 psi) MAX DIAMETER SOLIDS 4.8 mm (3/16”) DISPLACEMENT PER STROKE * Rubber – 0.98 L (0.26 gal) TPE – 1.1 L (0.29 gal) Full-Stroke PTFE – 1.1 L (0.29 gal) Reduced-Stroke PTFE – 0.53 L (0.14 gal) Ultra-Flex™ – .76 L (0.20 gal) * 1 cycle = 2 strokes
